Products

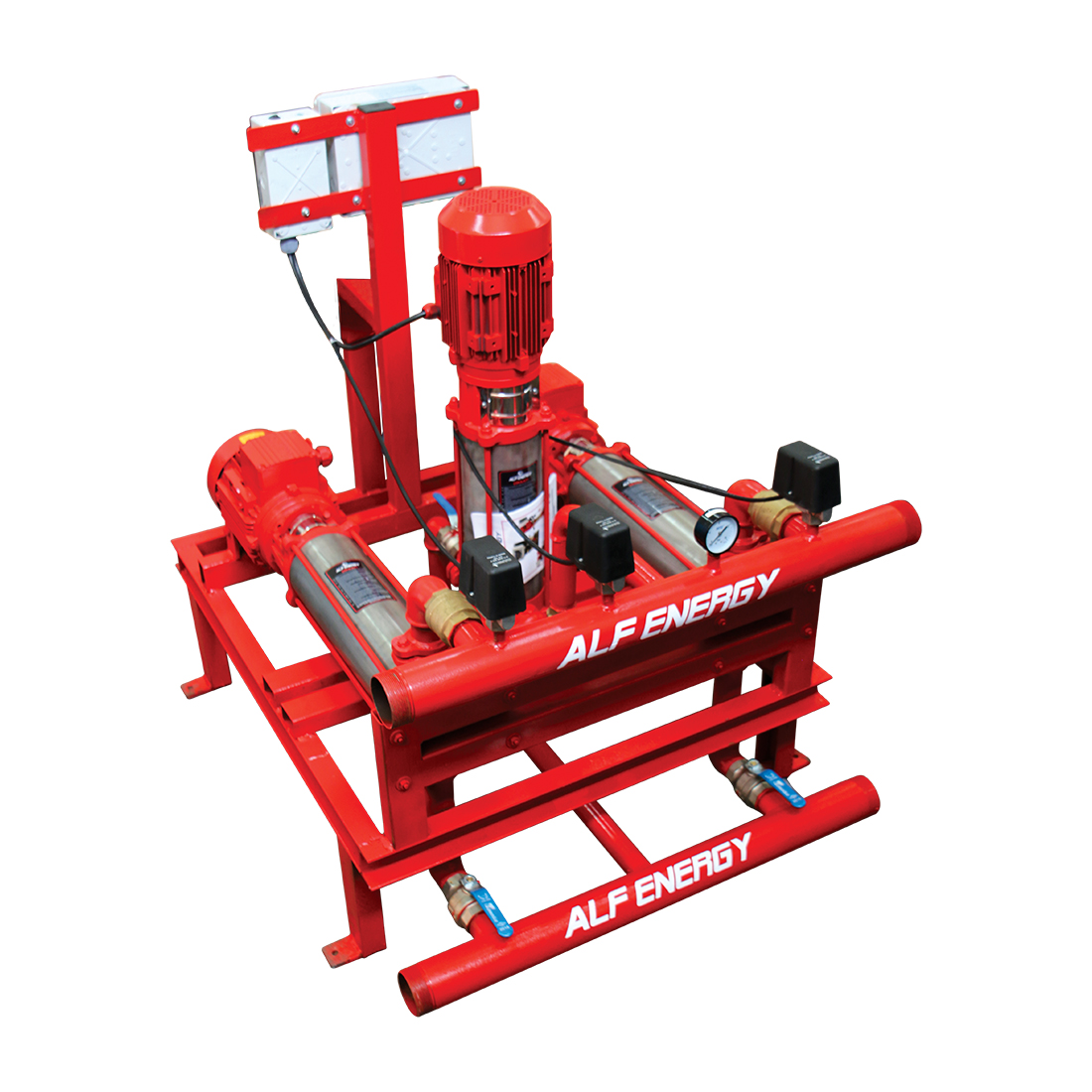

• YH Compact series sets have horizontal, multistage centrifugal pump coupled to a standard motor and horizontal, multistage centrifugal pump coupled to diesel motors.
• Pressure boosting sets with automatic operation, consisting of 2 (3 if jockey pumps) pumps on a common baseplate, with suction valves and delivery non-return valves, pressure switches, pressure gauge, float switch, and control panel as fixed speed.
• A Control panel controls to both electric and diesel motor pumps and consisting of phase protection, current protection, phase failure protection, high-low voltage protection for electric motor and oil control, heat control for diesel motor.
• Adjustable authomatic test system as standard for sets.
• Compact series have rectifier to charge the battery.
• Electric Motors 2-pole induction motors, 50 Hz, n=2900 rpm Three-phase 230/400 V ± %10 Insulation class F, Protection IP55 Constructed in accordance with IEC 60034. Other voltages and frequencies on request.
• 4 stroke and 1 cylinder, air cooled diesel motors.
• Diesel Fuel Tank Volume: 5,5 Lt.

As Standart Delivery

• A Control panel for electric and diesel pumps
• Suction & Delivery collector
• Pressure switch for each pumps
• Pressure gauge
• Common baseplate
• Valf, none-returnable check valf for each pumps
• Diesel Fuel Tank
